Medical Device Design and Development: A Complete Guide

While doctors and nurses are often the face of healthcare, behind the scenes, medical device design shapes nearly every tool they rely on to do their job.

The discipline combines engineering, creativity, and medical knowledge to develop tools for treating patients effectively. A pacemaker, for instance, has to work without fail for years inside someone’s chest without irritating or being rejected by the body it lives in.

That expectation of reliability applies to nearly every medical device on the market, all held to the same regulatory oversight. Getting to the final stage of medical device development means going through a lengthy process built to catch problems long before a device ever reaches a hospital or patient.

This post breaks down what medical device design is and the key stages of the development process, from prototyping to U.S. Food and Drug Administration (FDA) approval.

What Is Medical Device Design?

Medical device design is the process of turning a clinical need into equipment precise enough for healthcare professionals to treat and monitor patients safely. Medical devices range from simple tools like bandages to complex implantable devices like pacemakers.

_____________________________________________________

“A big part of medical design is that it’s heavy on human factors. We want every device to be safe, easy to use, and handle for any medical professional.”

— Diego Almaraz, Industrial Designer

_____________________________________________________

Some popular types of medical products include:

• Diagnostic devices that identify or measure a medical condition to guide a diagnosis (e.g., X-ray machines, blood glucose meters, pregnancy tests).
• Therapeutic devices that deliver treatment to manage or resolve a medical condition (e.g., insulin pumps, pacemakers, inhalers).
• Life-supporting or life-sustaining devices that support vital functions when the body can’t do so on its own (e.g., ventilators, dialysis machines, heart-lung machines).
• Surgical devices that assist with or enable surgical procedures (e.g., scalpels, laparoscopic instruments, electrocautery devices).
• Implantable devices that replace, support, or enhance biological structures once placed in the body (e.g., artificial joints, stents, cochlear implants).
• Monitoring devices that track vital signs and other health parameters (e.g., blood pressure monitors, ECG machines, wearable fitness trackers).
• Assistive devices that help individuals with disabilities manage daily life (e.g., mobility scooters, hearing aids, screen readers).

Beyond these categories, medical devices are also classified by the level of risk they pose to a patient, which determines how closely regulators review them before they reach the market. Risk level depends on factors such as the device’s intended use and the potential consequences of failure.

In the U.S., the FDA categorizes medical devices into three classes: Class I (low risk), Class II (moderate risk), and Class III (high risk). Class III devices, such as implants, undergo the most stringent review before they’re authorized for sale.

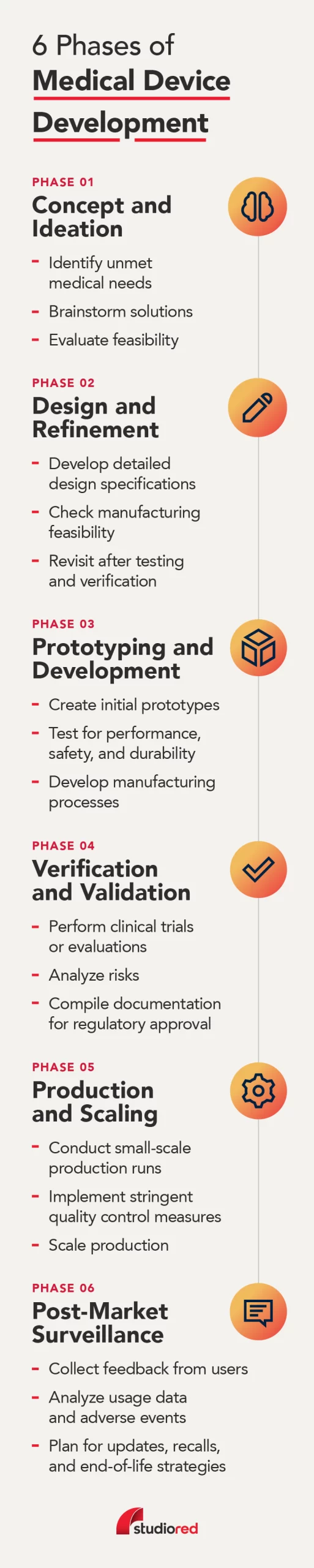

Phases of Medical Device Development

Medical device development is the process of transforming a concept into a commercially viable medical product. It’s a structured process that typically involves several distinct stages.

Phase 1: Research

The initial stage of medical device product development begins with identifying an unmet medical need through user research. This could stem from clinical observations, patient feedback, or oversights in existing healthcare practices.

Based on the insights gathered from user research, the team should map the user journey to define an optimal experience, following each step a practitioner, doctor, or patient takes through the existing process.

This journey will also highlight Americans with Disabilities Act (ADA) regulations, safety and compliance requirements at every step while identifying potential points of friction, such as space constraints in a crowded cath lab that could hinder device setup.

By the end of this phase, the team has a mapped user journey to move into the concept development phase, which lays the foundation for subsequent development stages.

_____________________________________________________

“Once we get the brief from the client, we start thinking about things like: How will someone use this? Was it the easiest way to access certain parts? How can we make this easy to clean? How can we make this look like a professional device? How can we differentiate this product from what is on the market? How can we improve upon the user experience? From there, we can begin sketching up some ideas.”

— Diego Almaraz, Industrial Designer

_____________________________________________________

Phase 2: Concept Exploration

Once a team has identified the need, the next step is to generate ideas. This involves brainstorming sessions where no idea is too far-fetched. The goal is to explore a wide range of possibilities grounded by the user journey.

Teams often build 1:1 scale mockups at this stage to test how the concepts hold up. Early testing happens with users in the environment where the device will live, whether that’s an operating room or a patient’s home.

Phase 3: Design Refinement

Once the concepts are tested, the design and engineering team evaluates the concepts and narrows them to a single direction.  Designers work closely with engineers and users to ensure the final design balances the feasibility, usability, and visual aesthetic.

The engineers will also consider the technological capabilities, production costs, and the manufacturing process, whether it’s injection molding, metal casting, or machining. Material selection also happens at this stage. Biocompatible materials like titanium and medical-grade silicone are common, selected for how safely they interact with the human body over time.

Not all of these decisions need to be locked in yet at this stage. Healthcare professionals often provide critical feedback that leads to design modifications, requiring the team to cycle back through earlier phases. These modifications can be to address safety issues or functional limitations before moving forward to final production.

Phase 4: Prototyping

With detailed design specifications in place, you’re ready to pass your medical device design on to the engineering team for prototype development.

Medical device prototyping is a crucial part of the design and development process, involving the creation of a physical or working model of the device to test before committing to full production. Initial prototypes are developed and rigorously tested to evaluate their performance, safety, and durability.

Appearance models can run alongside the engineering work. At StudioRed, we build them to match the finished device’s shape and surface finish, giving stakeholders a realistic preview while internal components are still in development.

The prototyping and development phase also includes selecting and detailing manufacturing processes. Engineers design parts that lead to efficient and scalable production methods that adhere to high-quality standards, such as:

• Developing precise molding techniques for plastic components
• Implementing rigorous quality control checks at each production stage

This preparation sets the stage for the next phase, where the device will undergo more extensive testing and regulatory scrutiny.

Phase 5: Verification and Validation

The goal of the verification and validation (V&V) stage is to ensure the medical device is safe and compliant with all regulatory standards. Verification confirms the design meets initial specifications, while validation proves the final product fulfills its intended uses and user needs.

This stage often involves clinical trials or evaluations, during which the device undergoes rigorous real-world testing to gather data on performance and efficacy. That can include anything from collecting patient outcomes and assessing ease of use for healthcare professionals to conducting comparisons and tracking adverse events. Usability testing here typically follows IEC 62366, the standard written to catch use errors.

During the V&V stage, teams must also ensure their device complies with regulatory standards across all intended target markets, including formal risk management under ISO 14971. Once verified, the next step is to obtain regulatory approval to market and sell the device, supported by documentation demonstrating compliance.

In the U.S., this means securing either premarket approval (PMA) for high-risk devices or 510(k) clearance for moderate-risk devices. Approval hinges on providing compelling clinical evidence, test reports, risk analyses, and other data demonstrating the device’s safety and effectiveness for its intended uses.

Phase 6: Production and Scaling

Once the device passes V&V, it’s time to transition to full-scale production. This involves ensuring manufacturing processes are well-suited to produce the device at scale while maintaining cost-efficiency. Companies typically start with small-scale production runs to validate processes before ramping up to higher volumes. This helps identify and address any issues early and confirm product samples meet the initial design specifications.

During production, teams implement stringent quality control measures to comply with good manufacturing practices (GMP) under a broader ISO 13485 quality management system. Quality control includes careful monitoring of the whole process: the environment, equipment, packaging, storage, and distribution.

Comprehensive documentation and standard operating procedures for each process are required, with products closely inspected and tested at multiple points. This record becomes part of the device’s design history file (DHF), which regulators reference to confirm that the device was built as designed.

After successful small-scale runs, the production process scales by adding more resources and automation. It’s crucial that quality isn’t compromised in favor of quantity, so additional quality control checkpoints are often put in place to account for the higher output. This scaling process continues until the maximum production target is reached, ensuring a consistent supply of safe and effective medical devices.

Phase 7: Post-Market Surveillance

The development journey doesn’t end with the product launch. Post-market surveillance is a continuous process of monitoring and improving the device’s performance in real-world settings. This involves:

• Collecting feedback from healthcare professionals and patients
• Analyzing data on device usage and adverse events
• Making necessary updates to ensure the device’s safety and effectiveness over time
• Maintaining regulatory compliance requirements through ongoing reporting and documentation

As technology and clinical practices advance, the device may require updates to remain useful and safe. The manufacturer also needs to plan for potential recalls and end-of-life strategies to properly phase out the device. An end-of-life plan helps ensure devices are replaced or serviced before they become obsolete or unsafe.

5 Common Challenges in Medical Device Design

Designing medical devices presents a unique set of obstacles, often more complex than those in other industries. From stringent regulations to the imperative of patient safety, developers face numerous hurdles that can impact timelines, costs, and market success.

1. Misunderstanding of User Needs

A primary challenge in medical device design and manufacturing is a fundamental misunderstanding of user needs. This often happens when designers rely solely on internal assumptions or limited feedback, rather than conducting research with actual end users in their real-world environments.

Revisit the user journey mapped during ideation to check whether the current design resolves the pain point it was meant to fix. Test the finished design with real clinicians and patients rather than internal team members to surface realistic friction points.

Without a deep understanding of how healthcare professionals and patients will interact with the device, what their workflows entail, and what pain points truly exist, the resulting design may be difficult to use or even unsafe.

2. Lack of Expertise

Another significant challenge is a widespread lack of specialized expertise within development teams. Medical product design is a highly interdisciplinary field, requiring deep knowledge in areas like engineering, materials science, biology, clinical medicine, regulatory affairs, and human factors. A regulatory affairs specialist is the most commonly missing role, and teams without one often catch compliance issues only after the design has already been shaped.

When teams lack the necessary expertise in any of these critical areas, it can lead to design flaws and inefficient processes. Ultimately, this results in a device that fails to perform as intended or to meet market needs.

Since many product development teams aren’t medical professionals, they should collaborate closely with clinicians who understand how the device will be used and who can validate that the design is medically sound.

3. Regulatory Requirements

Regulatory requirements represent one of the most formidable hurdles in the medical device design process. The industry is highly regulated to ensure patient safety and device efficacy, with strict standards varying significantly by country and region, from the FDA in the U.S. to the CE Mark in Europe.

These regulations are constantly evolving and cover every stage of the device lifecycle, from initial design and testing to manufacturing and post-market surveillance.

Navigating this complex, ever-changing landscape requires specialized expertise and meticulous documentation, which can lead to prolonged development timelines and high costs. Map the regulatory pathway early alongside the device’s risk classification to give teams a clearer target to design toward.

4. Strain Due to Small Teams

Developing complex medical devices can place a significant strain on small development teams. With limited personnel, each team member may wear multiple hats, leading to increased workload and potential burnout. A limited team also means a lack of specialized focus on critical areas. These factors can result in delays, quality compromises, and difficulty keeping pace with the demanding nature of medical device development.

Product design and development studios like StudioRed can mitigate this strain by providing specialized expertise, like prototype engineering and ergonomic analyses, allowing small teams to scale their capabilities without expanding their internal headcount.

5. Ensuring User-Friendliness

Ensuring user-friendliness is an essential yet often challenging aspect of medical device design. A device that’s difficult to use or poorly integrated into clinical workflows can lead to user errors. It can also reduce adoption or, in the worst cases, contribute to adverse patient outcomes.

This challenge is compounded by the range of people using the same device. Highly trained medical professionals and patients with varying levels of technical literacy may all need to operate it. Many devices are also used in high-stress environments, adding another layer of difficulty.

Achieving user-friendliness starts with human factors research. It also depends on iterative usability testing throughout development. Ultimately, it’s about understanding the cognitive and physical limitations of the people using the device.

Key Considerations in Medical Product Design

Designing a successful medical device requires careful consideration of various factors that can significantly impact its performance and safety.

Human Factors and Usability

These are the factors that shape whether a device feels intuitive to the people using it:

• Target user focus: There’s a natural tendency to develop a product that can do almost everything, but it’s important to simplify functionality to offer only what the majority of medical professionals or consumers will actually use.
• Human factors: When designing a medical device, it’s important to account for factors such as cognitive load and familiarity. The best examples of human-centered design in healthcare make it as easy as possible for the target market to use the product, whether that’s patients, healthcare professionals, or both.
• Use environment: Where a device lives shapes its design. One that rides on a cart or sits in a storage closet between uses needs to be light enough to move and compact enough to store.
• Ergonomics: A design that seems right in theory doesn’t always feel the best in someone’s hands. Conduct real-world testing with actual device form and size for hand-held devices.

An example of that mismatch played out when the StudioRed team once monitored multiple surgeries involving an arthroscopic wand and asked surgeons what they might suggest to improve or change. The common answer was, “It’s fine.” However, showing them mockups of various concepts they could hold and react to sparked detailed feedback.

Quality, Risk, and Regulatory Compliance

A single overlooked quality or compliance issue can turn into a recall, a lawsuit, or worse. These elements of quality protect the device and the people using it once it reaches the market:

• Safety and robustness: A primary safety mechanism, backed by a second, independent one that kicks in if the first fails, ensures the device remains safe even if one system malfunctions. Minimize or eliminate potential workarounds to prevent unintended use that could compromise safety. A disposable unit that’s unusable after one use, for example, reduces the risk of introducing contaminants into the system.
• Sustainability: Disposability and eco-friendly design reduce waste and environmental impact during daily hospital use. Hospitals often respond to thoughtful medical equipment design solutions that consider these factors. Not only will this resonate in the sales cycle, but it will also likely become a point of pride for the hospital.

• Compliance: Regulatory standards specific to the device’s target countries, such as the FDA for the U.S., confirm that a device meets the safety and quality requirements each market demands before it can be sold there. A safety consultant can counsel the team through component selection and testing to help meet these standards.
• Documentation: A DHF provides regulators with the evidence they need to confirm that a device was built as designed. Keeping specifications, research, and testing reports in chronological order makes the record easy to trace.
• Biocompatibility and material constraints: Any medical device intended to come into contact with humans should use materials that don’t cause adverse effects, such as allergic reactions or irritation.
• Durability: Whether you’re designing one-time-use medical devices or products for long-term, repeated use, durability should be a primary consideration throughout the design phase. If the device is prone to breaking or malfunctioning in stress tests, it likely won’t hold up in critical real-world situations.
• Serviceability: Parts that get replaced between patients for hygiene reasons, such as the disposable covers on an ear thermometer, should be quick and simple to swap. The easier the swap, the more likely staff are to do it every time.

The best medical device design companies maintain an internal copy of all file revisions. StudioRed has always followed this practice, and many clients return years later asking for a copy of the final design and engineering files.

Emerging Trends in Medical Device Design

Medical device design is far from a static field. Designers are constantly adapting their approaches as technology and processes change. Below are five of the most prevalent trends influencing medical equipment design today:

• AI implementation: AI is quickly becoming a critical component of medical devices, enabling more accurate diagnostics for better treatment prescriptions and predictive analytics that help prevent emergencies.
• Wearable health technology: Miniaturization in sensors, batteries, and other components has paved the way for the emergence of wearable technology, from smart watches and smart rings to tech-infused patches and clothing. Each of these devices can help patients and healthcare professionals alike monitor and manage their conditions with a level of detail that was previously unattainable.
• 3D printing: 3D printing technology has enabled the production of products and variations tailored to individual patients’ anatomy, such as custom crowns in the dental industry. It has also expedited the prototype manufacturing process, allowing design teams to produce and test complex geometries more quickly.
• Remote patient monitoring: These connected devices that send patient data directly to a clinician outside a hospital setting can catch issues earlier and reduce the number of in-person visits needed to manage a chronic condition.
• Cybersecurity regulations: These new FDA requirements for connected devices aim to protect against unauthorized access, a growing concern as more devices transmit patient data over networks.

Examples of Medical Devices

As a medical device design consultant with decades of experience, we at StudioRed have partnered with companies across the industry to design high-quality products. Here are a few examples of our work:

Biotechne Leo

The Biotechne Leo, a StudioRed design, is a biomedical device designed for high-throughput protein analysis. Professionals can use it to process up to 96 samples at once and produce results in less than three hours.

We built the interior to be as clean and easy to maintain as possible, taking into account ease of use and the potential for spills. We also paid close attention to the door, optimizing its design for durability and structural integrity to prolong its lifespan.

Maquet Heartstring

The Maquet Heartstring III is a proximal anastomotic device for heart surgery. We designed it to provide a complete hemostatic seal without the need for an aortic side-clamp. It also includes simple push-and-pull buttons and levers, as well as numbered visual cues that let surgeons quickly ascertain the correct sequence for using the device.

NovaRay Scan Cath System

The NovaRay Scan Cath system is a cardiac catheterization device that provides high-quality imaging with accurate depth-of-field information while minimizing the radiation dose delivered to patients. We designed the conceptual look and feel of the device for optimal patient comfort, clinician use, and aesthetic appeal.
